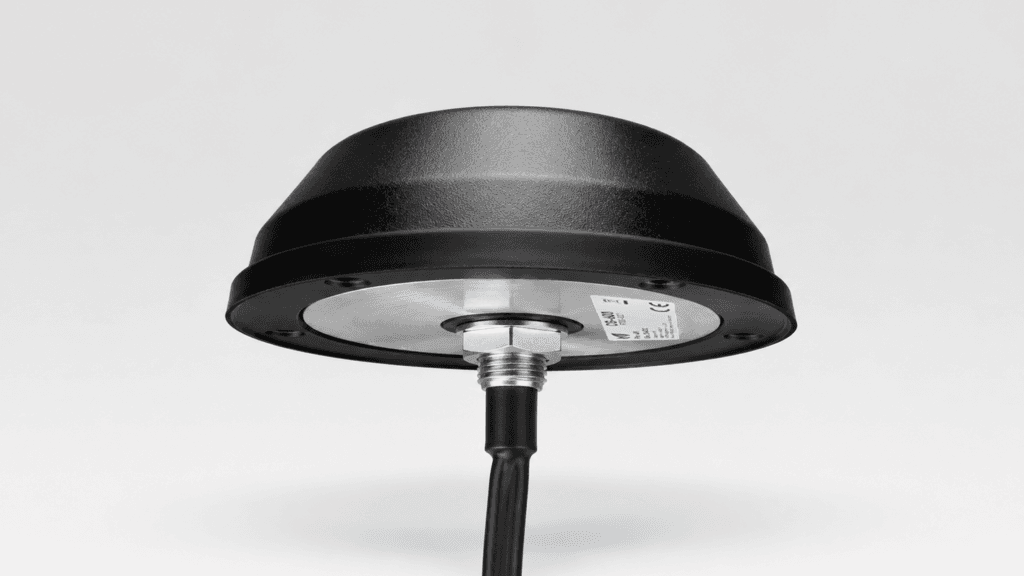

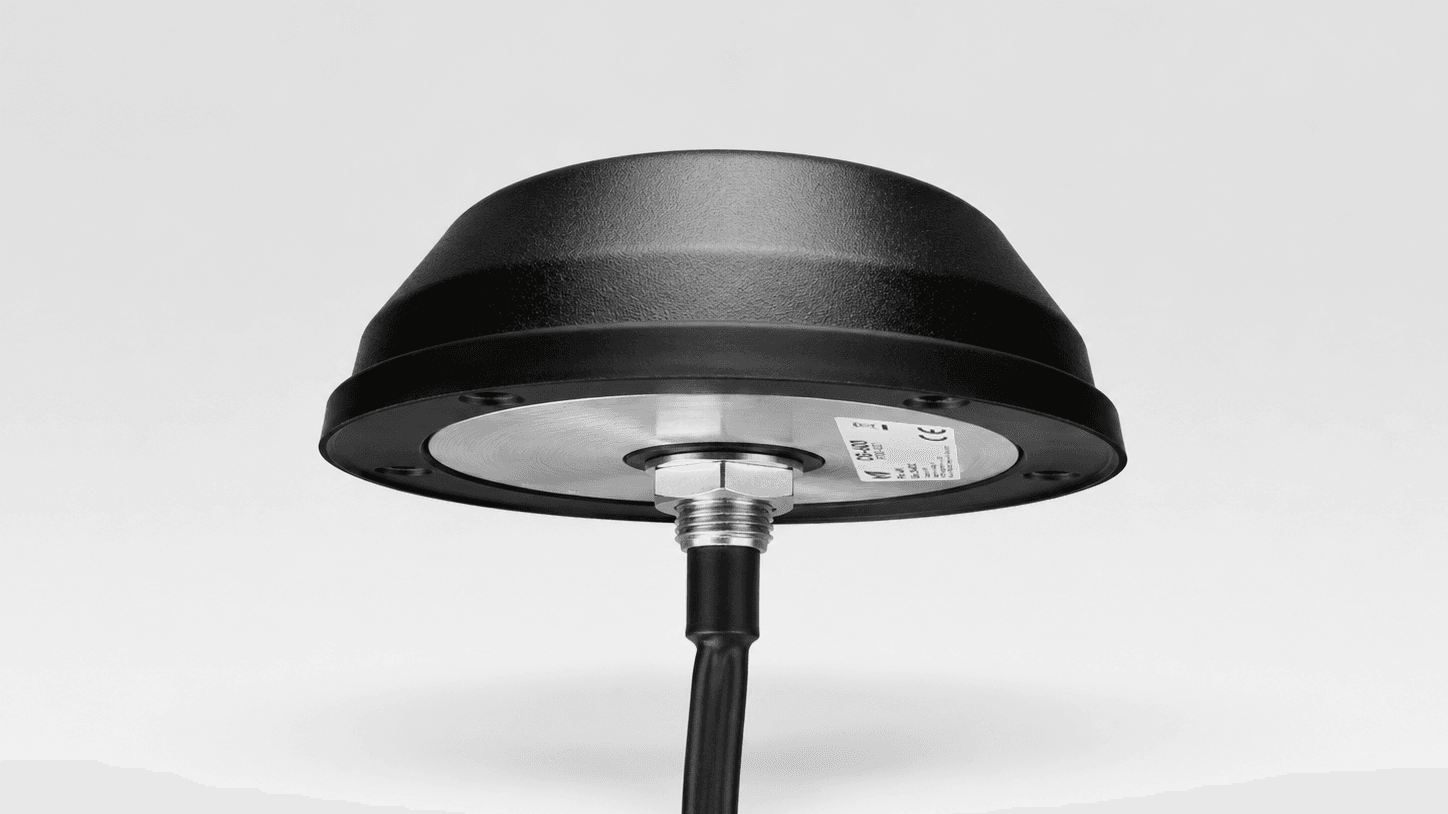

Capelon CG-600 under

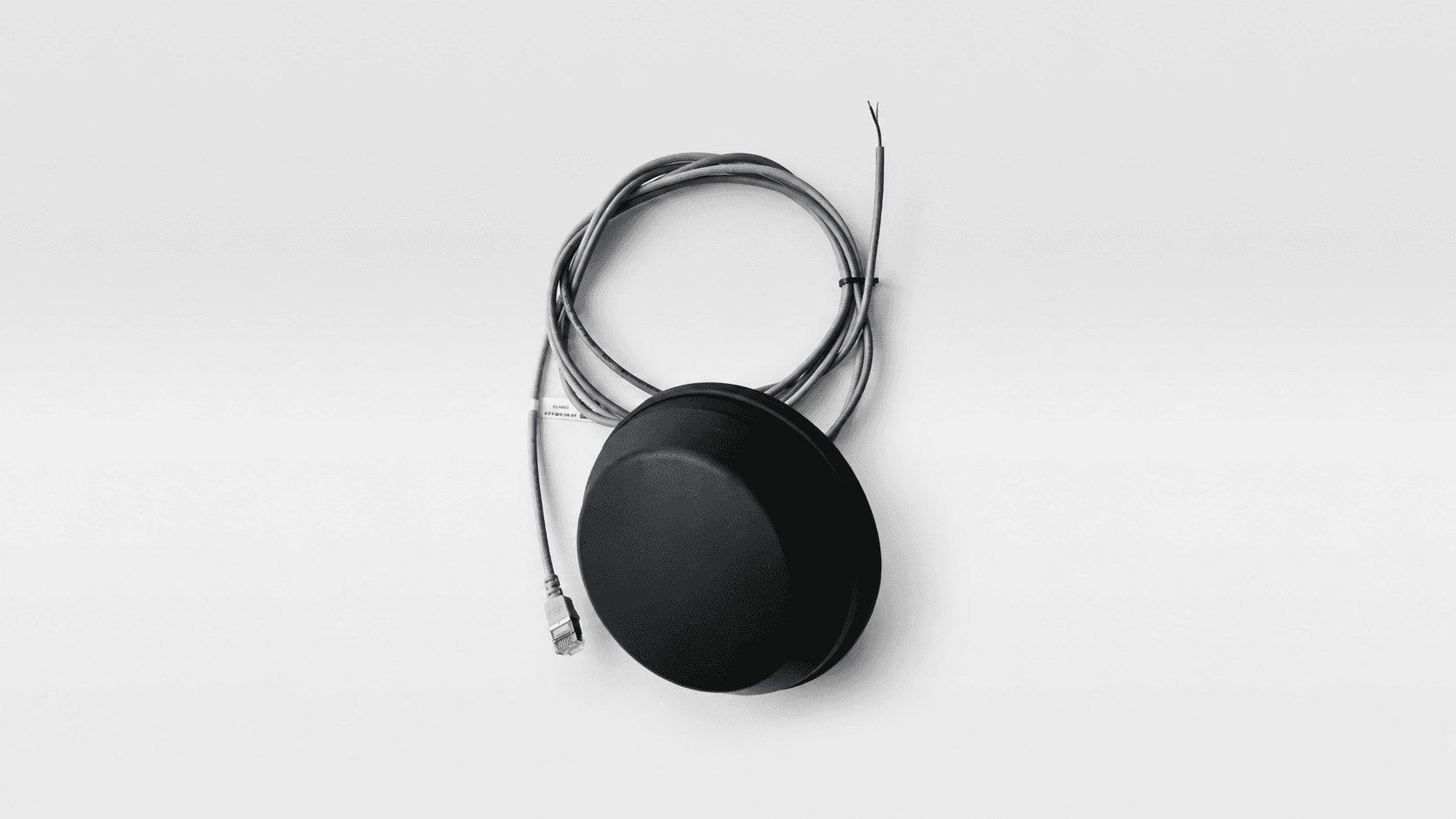

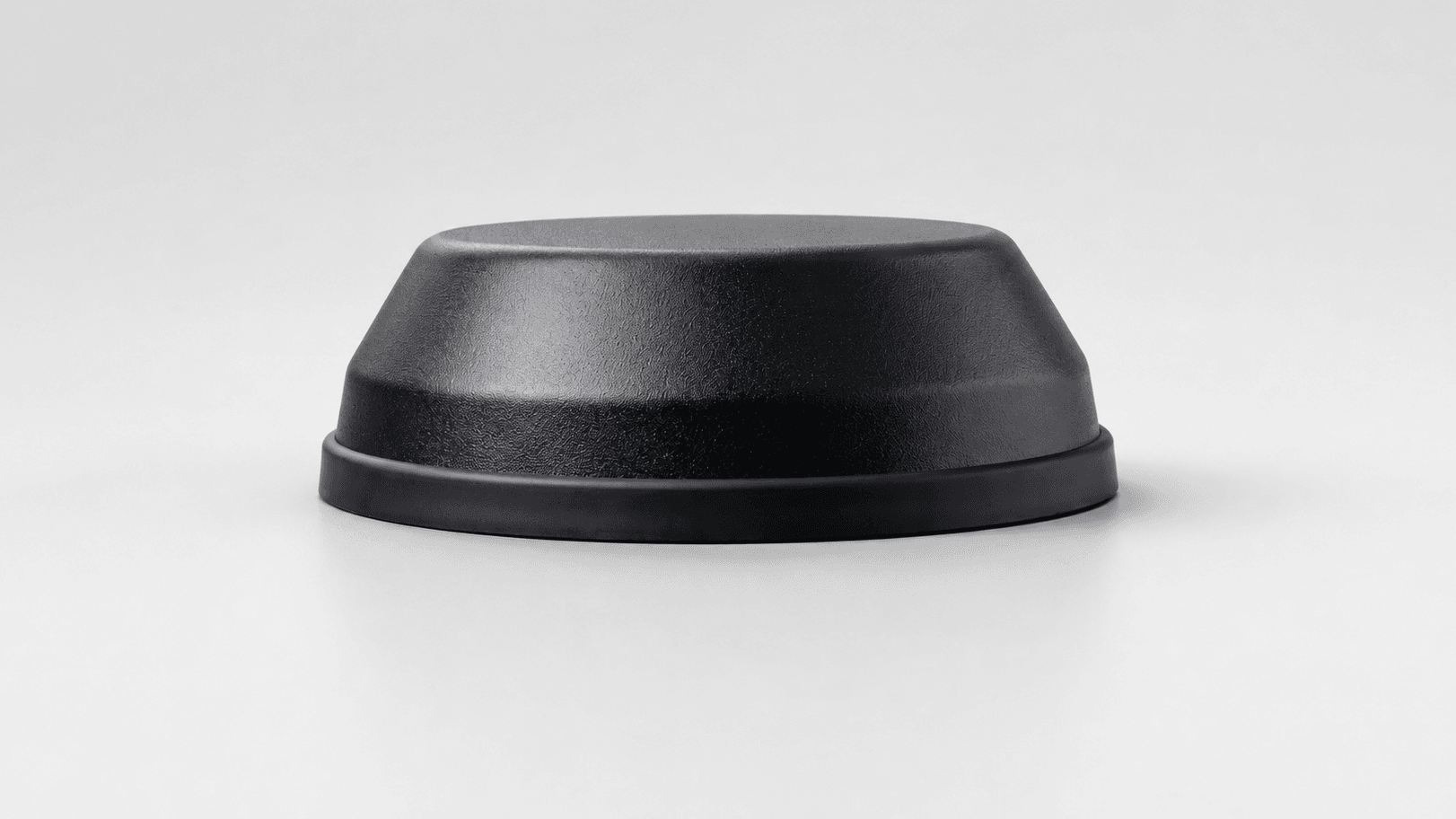

Capelon CG-600 from side
Capelon CG-600 top view

CG-600 Gateway

The CG-600 is an IoT Gateway for the GreenStreet Wirepas RF mesh network. It connects field devices to city platforms and external systems using cellular, Wi-Fi and Ethernet connectivity supporting communication of network control, monitoring, alarms and integration.

Key features

  • Provides gateway access between GreenStreet field devices and external platforms
  • Supports cellular, Wi-Fi and Ethernet connectivity
  • Enables network control and monitoring in the GreenStreet Wirepas RF mesh network
  • Uses standard software protocols, including MQTT/JSON and CBOR
  • Integrates multiple antennas and gateway electronics in one compact unit
  • Designed with a robust enclosure for demanding outdoor environments
  • Supports flexible mounting through compact design and ground-independent antennas
Download Product Sheet

Expand the boxes below by clicking the  +

Power Supply: 18–30 VDC

Connectivity: Cellular 4G, LTE CAT-M1 Worldwide, Ethernet 100 Mbit, WiFi 802.11b/g/n, Bluetooth 4.2/BLE, RF mesh 2.4 GHz, built-in vertical antennas

Operating Temperature: -40 to +60 °C

Housing: PC/PBT/Aluminium alloy, IP-6K9K class.

Ø: 135 mm

Height: 40 mm

Weight: 500 g

Approvals: RED Directive 2014/53/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU, LVD Directive 2014/35/EU

Radio: EN 301 489-1, EN 301 489-17, EN 301 489-52, EN 300 328, ver. 2.2.2

EMC: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3

Safety: EN IEC 62368-1:2020+A11, Overvoltage Category II

Altitude: Max 2000 m. For higher altitudes, contact Capelon
