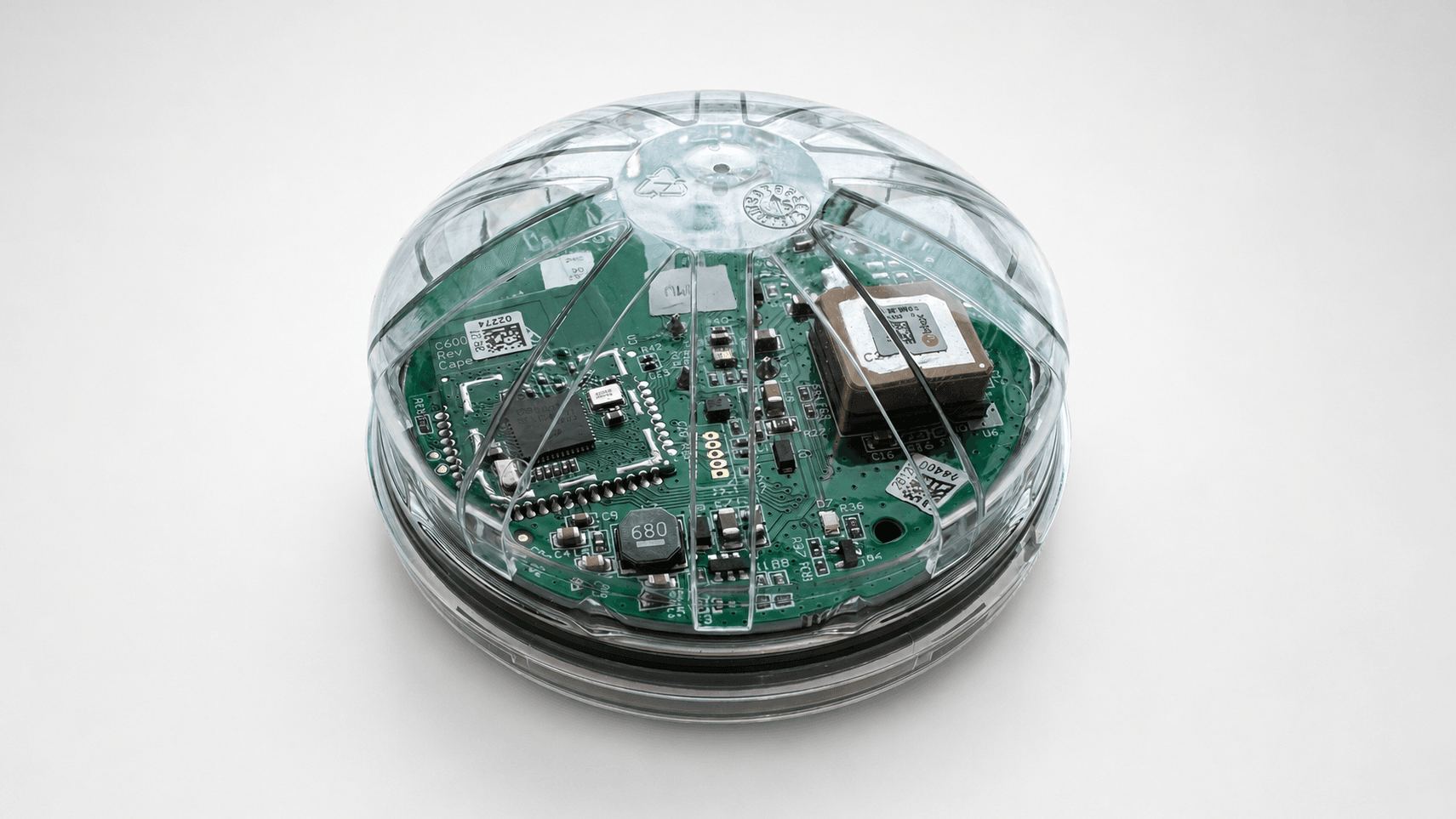

Capelon GLC-15 side view

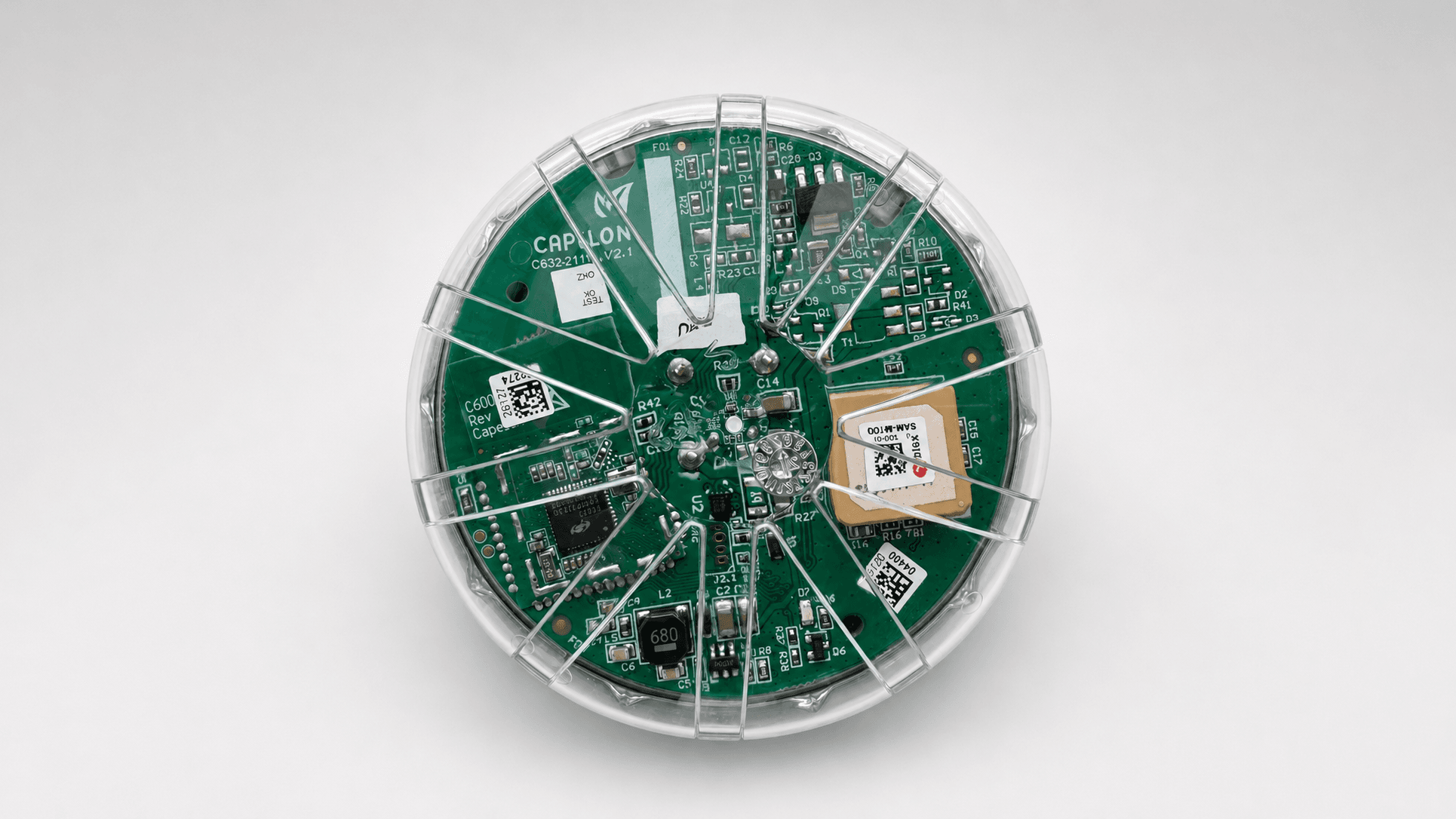

Capelon GLC-15 top view

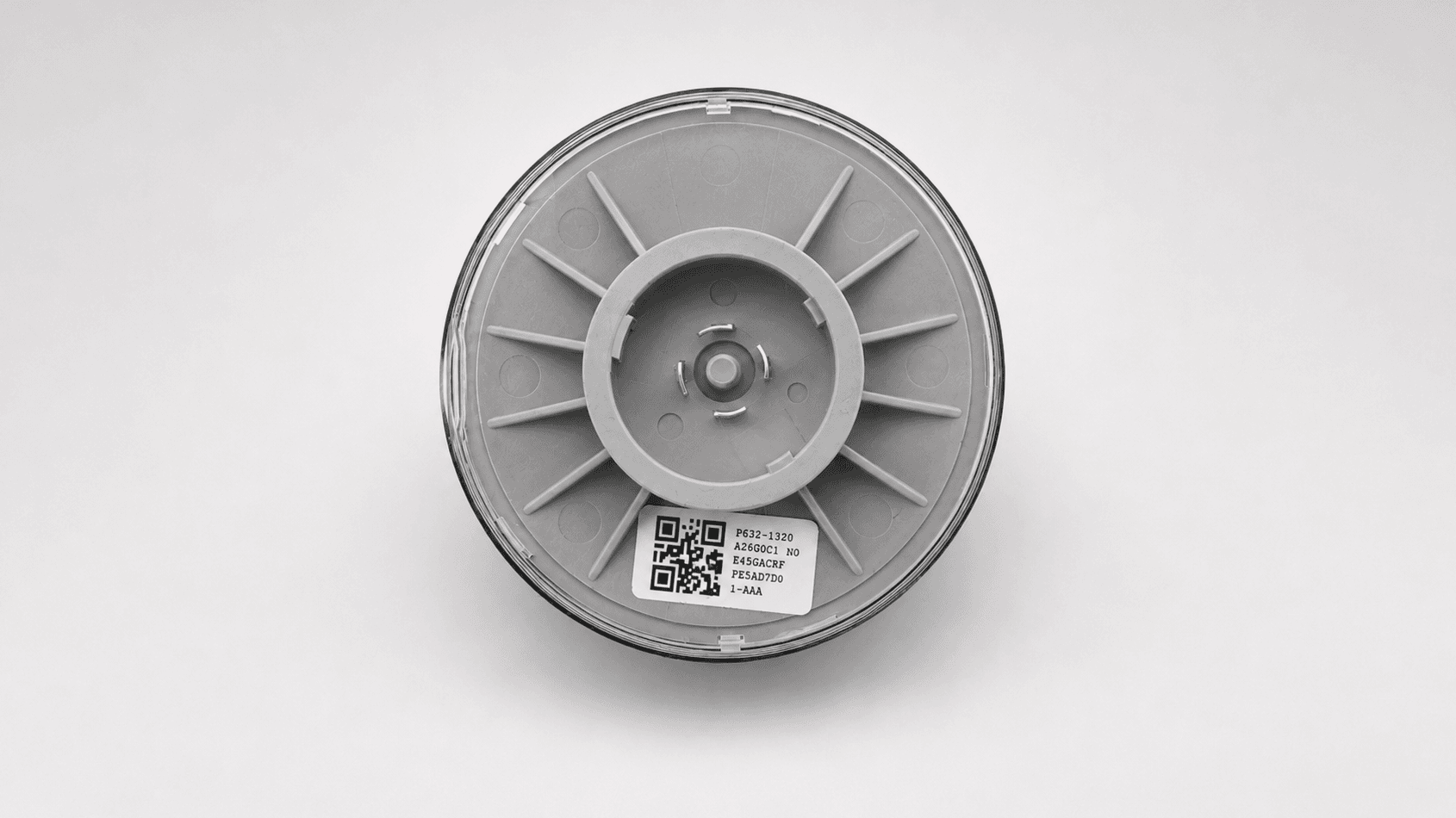

Capelon GLC-15 back

GLC-15 Luminaire Node

The GLC-15 is a Zhaga-based outdoor light controller connecting and controlling luminaires in the GreenStreet system. It supports luminaire-level control, monitoring and dimming, making it possible to apply lighting behaviour where more precision is needed.

Key features

  • Designed for luminaires with Zhaga Book 18 receptacles
  • Supports DALI, D4i and multi-driver control
  • Enables luminaire-level dimming and lighting profiles
  • Supports monitoring of connected luminaires through the GreenStreet network
  • Uses decentralised Wirepas RF mesh communication as part of the GreenStreet system
  • Helps reduce unnecessary energy use where luminaire-level control is deployed
  • Supports stepwise deployment, adding precision where it creates operational or energy value
Download Product Sheet

Expand the boxes below by clicking the  +

Power Supply: 24 VDC

Connectivity: RF mesh 2.4 GHz, GFSK, integrated PCB antenna. Wirepas as default RF protocol software.

Operating Temperature: -40 to +65 °C
Housing: Zhaga Book 18. Receptacle: PBT. Top: Polycarbonate, UV-f1 UL746C. Gasket: LSR. IP66, IK09

Maximum distance between devices: 80 m line of sight.

Control interface: DALI, D4i, multi-driver option.

Ø: 80 mm

Height: 33 mm

Weight: 100 g

Approvals: RED Directive 2014/53/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU, LVD Directive 2014/35/EU

Radio: EN 301 489-1, EN 301 489-17, EN 301 489-19, EN 300 328, ver. 2.2.2

EMC: EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3

Safety: EN IEC 62368-1:2020+A11, Overvoltage Category II

Altitude: Max 2000 m. For higher altitudes, contact Capelon.
